User-Friendly Wrapper#

In this notebook we present the a user-friendly approach in the well-known ABT-BUY dataset. This is a simple approach, specially developed for novice users in ER.

How to install?#

pyJedAI is an open-source library that can be installed from PyPI.

%pip install pyjedai -U

%pip show pyjedai

Imports

import os
import sys
import pandas as pd

Data Reading#

from pyjedai.datamodel import Data

data = Data(
    dataset_1=pd.read_csv("./../data/ccer/D2/abt.csv", sep='|', engine='python', na_filter=False).astype(str),
    attributes_1=['id','name','description'],
    id_column_name_1='id',
    dataset_2=pd.read_csv("./../data/ccer/D2/buy.csv", sep='|', engine='python', na_filter=False).astype(str),
    attributes_2=['id','name','description'],
    id_column_name_2='id',
    ground_truth=pd.read_csv("./../data/ccer/D2/gt.csv", sep='|', engine='python'),
)

WorkFlow#

from pyjedai.workflow import BlockingBasedWorkFlow, EmbeddingsNNWorkFlow, compare_workflows
from pyjedai.block_building import StandardBlocking, QGramsBlocking, ExtendedQGramsBlocking, SuffixArraysBlocking, ExtendedSuffixArraysBlocking
from pyjedai.block_cleaning import BlockFiltering, BlockPurging
from pyjedai.comparison_cleaning import WeightedEdgePruning, WeightedNodePruning, CardinalityEdgePruning, CardinalityNodePruning, BLAST, ReciprocalCardinalityNodePruning, ReciprocalWeightedNodePruning, ComparisonPropagation
from pyjedai.matching import EntityMatching
from pyjedai.clustering import ConnectedComponentsClustering, UniqueMappingClustering
from pyjedai.vector_based_blocking import EmbeddingsNNBlockBuilding

/home/konstantinos/pyJedAI-Dev/src/pyjedai/workflow.py:11: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from tqdm.autonotebook import tqdm

w = BlockingBasedWorkFlow(
    block_building = dict(
        method=QGramsBlocking,
        params=dict(qgrams=3),
        attributes_1=['name'],
        attributes_2=['name']
    ),
    block_cleaning = [
        dict(
            method=BlockPurging,
            params=dict(smoothing_factor=1.025)
        ),
        dict(
            method=BlockFiltering,
            params=dict(ratio=0.8)
        )
    ],
    comparison_cleaning = dict(method=CardinalityEdgePruning),
        entity_matching = dict(
        method=EntityMatching,
        metric='sorensen_dice',
        similarity_threshold=0.5,
        attributes = ['description', 'name']
    ),
    clustering = dict(method=ConnectedComponentsClustering),
    name="Worflow-Test"
)

w.run(data, verbose=True)

***************************************************************************************************************************
                                         Method:  Q-Grams Blocking
***************************************************************************************************************************
Method name: Q-Grams Blocking
Parameters:
	Q-Gramms: 3
Runtime: 0.1329 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      0.08%
	Recall:       100.00%
	F1-score:       0.17%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Block Purging
***************************************************************************************************************************
Method name: Block Purging
Parameters:
	Smoothing factor: 1.025
	Max Comparisons per Block: 34452.0
Runtime: 0.0135 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      0.10%
	Recall:       100.00%
	F1-score:       0.19%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Block Filtering
***************************************************************************************************************************
Method name: Block Filtering
Parameters:
	Ratio: 0.8
Runtime: 0.0966 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      0.25%
	Recall:        99.91%
	F1-score:       0.49%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Cardinality Edge Pruning
***************************************************************************************************************************
Method name: Cardinality Edge Pruning
Parameters:
	Node centric: False
	Weighting scheme: JS
Runtime: 0.9665 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      4.71%
	Recall:        98.70%
	F1-score:       8.99%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Entity Matching
***************************************************************************************************************************
Method name: Entity Matching
Parameters:
	Metric: dice
	Attributes: None
	Similarity threshold: 0.5
	Tokenizer: white_space_tokenizer
	Vectorizer: None
	Qgrams: 1
Runtime: 3.7806 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:     77.78%
	Recall:         1.95%
	F1-score:       3.81%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Connected Components Clustering
***************************************************************************************************************************
Method name: Connected Components Clustering
Parameters:
	Similarity Threshold: None
Runtime: 0.0003 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:     90.48%
	Recall:         1.77%
	F1-score:       3.46%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

w.to_df()

	Algorithm	F1	Recall	Precision	Runtime (sec)	Params
0	Q-Grams Blocking	0.167526	100.000000	0.083833	0.132942	{'Q-Gramms': 3}
1	Block Purging	0.190665	100.000000	0.095423	0.013543	{'Smoothing factor': 1.025, 'Max Comparisons p...
2	Block Filtering	0.493133	99.907063	0.247176	0.096584	{'Ratio': 0.8}
3	Cardinality Edge Pruning	8.985532	98.698885	4.707030	0.966452	{'Node centric': False, 'Weighting scheme': 'JS'}
4	Entity Matching	3.807797	1.951673	77.777778	3.780590	{'Metric': 'dice', 'Attributes': None, 'Simila...
5	Connected Components Clustering	3.463993	1.765799	90.476190	0.000292	{'Similarity Threshold': None}

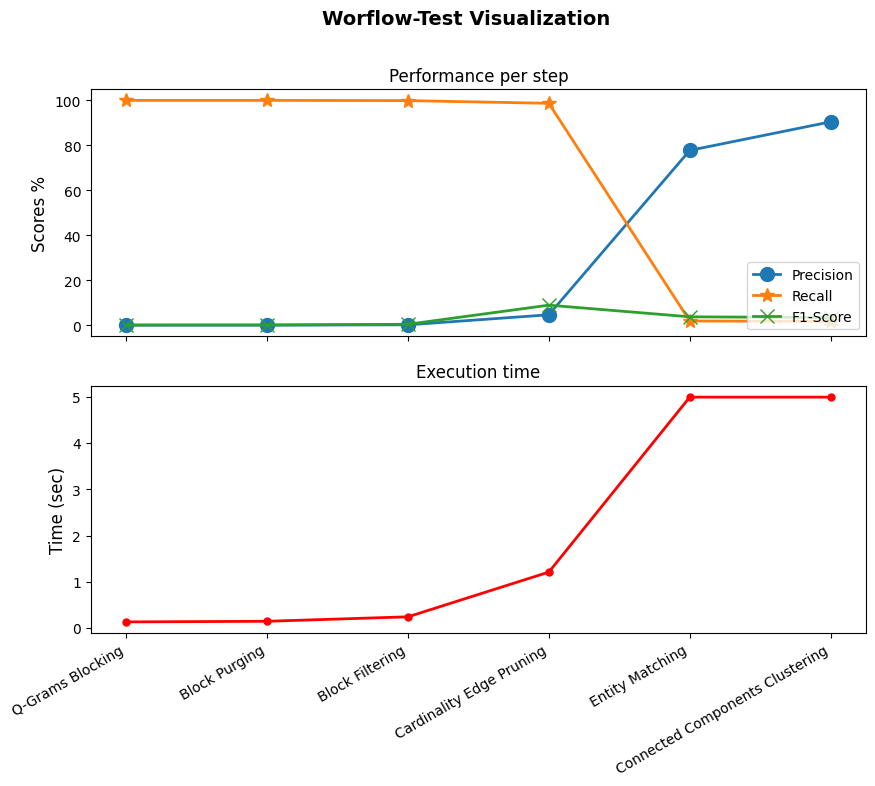

w.visualize()

../_images/1d93c0c0e0e8ac32e9ef850cd33151d24c8fb44aed2a689d7a4074e1afc17056.png

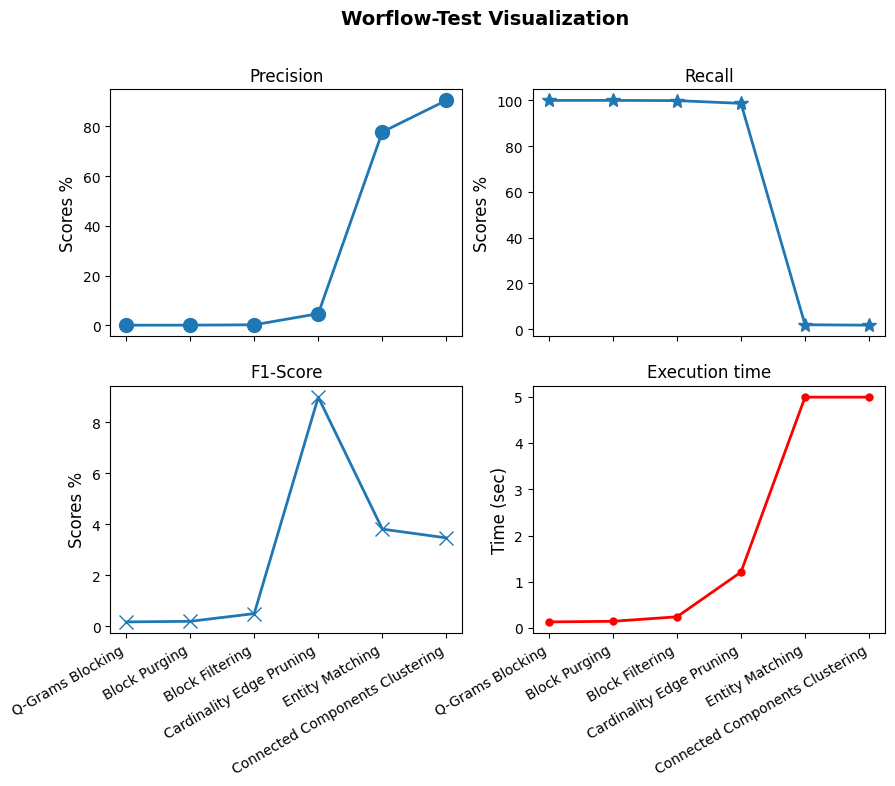

w.visualize(separate=True)

../_images/52c2faf8a742cc63ee61a0174b72e5b353011eceb1c898b93b4977a0b3e3d8ed.png

Multiple workflows - Comparison#

w1 = BlockingBasedWorkFlow(
    block_building = dict(
        method=QGramsBlocking,
        params=dict(qgrams=4),
        attributes_1=['name'],
        attributes_2=['name']
    ),
    block_cleaning = [
        dict(
            method=BlockFiltering,
            params=dict(ratio=0.6)
        ),
        dict(
            method=BlockPurging,
            params=dict(smoothing_factor=1.025)
        )
    ],
    comparison_cleaning = dict(method=CardinalityEdgePruning),
        entity_matching = dict(
        method=EntityMatching,
        metric='sorensen_dice',
        similarity_threshold=0.5,
        attributes = ['description', 'name']
    ),
    clustering = dict(method=ConnectedComponentsClustering)
)
w1.run(data, verbose=False, workflow_tqdm_enable=True)

BlockingBasedWorkFlow-1: 100%|██████████| 5/5 [00:02<00:00,  1.26it/s]

Workflow based on pyTorch Embdeddings#

block_building :
- method : EmbeddingsNNBlockBuilding
- params : Constructor parameters
- exec_params : build_blocks parameters
clustering :
- method : UniqueMappingClustering
- params : Constructor parameters (i.e similarity threshold)

w2 = EmbeddingsNNWorkFlow(
    block_building = dict(
        method=EmbeddingsNNBlockBuilding,
        params=dict(vectorizer='sminilm', similarity_search='faiss'),
        exec_params=dict(top_k=5,
                         similarity_distance='euclidean',
                         load_embeddings_if_exist=False,
                         save_embeddings=False)
    ),
    clustering = dict(method=UniqueMappingClustering),
    name="EmbeddingsNNWorkFlow-Test"
)

w2.run(data, verbose=True)

Building blocks via Embeddings-NN Block Building [sminilm, faiss]

Embeddings-NN Block Building [sminilm, faiss, cuda]: 100%|██████████| 2152/2152 [00:21<00:00, 102.16it/s]

disable True
***************************************************************************************************************************
                                         Method:  Embeddings-NN Block Building
***************************************************************************************************************************
Method name: Embeddings-NN Block Building
Parameters:
	Vectorizer: sminilm
	Similarity-Search: faiss
	Top-K: 5
	Vector size: 384
Runtime: 21.7341 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:     18.35%
	Recall:        91.73%
	F1-score:      30.58%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Unique Mapping Clustering
***************************************************************************************************************************
Method name: Unique Mapping Clustering
Parameters:
	Similarity Threshold: 0.1
Runtime: 0.0474 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:     79.44%
	Recall:        73.61%
	F1-score:      76.41%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

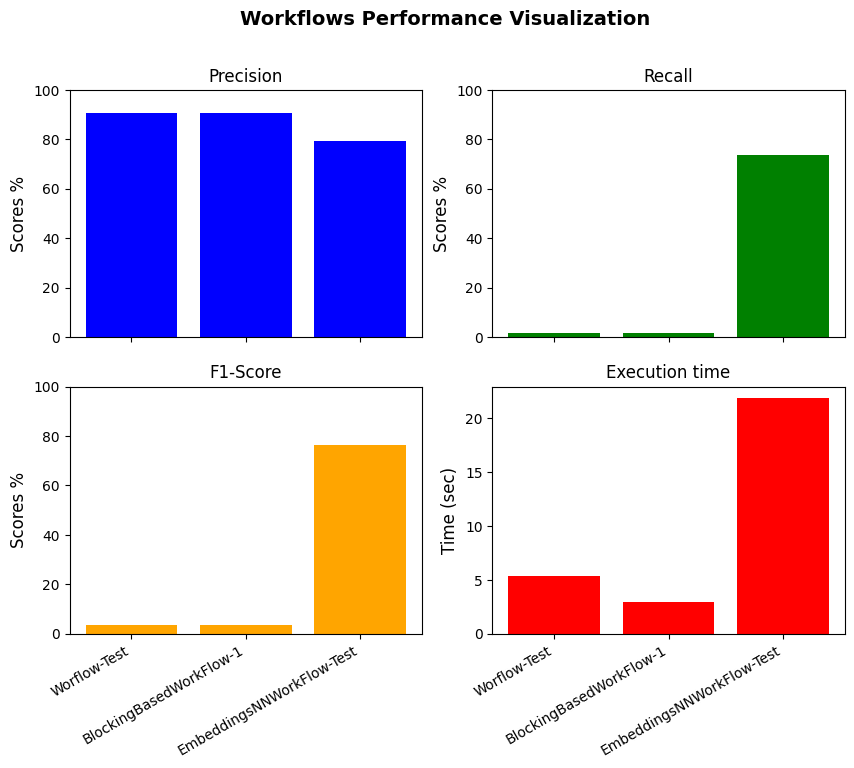

compare_workflows([w, w1, w2], with_visualization=True)

../_images/37112cbe36c8260a682e1771d29d49b3be51ff54bae94cf27c790d59dbab1060.png

	Name	F1	Recall	Precision	Runtime (sec)
0	Worflow-Test	3.463993	1.765799	90.476190	5.330923
1	BlockingBasedWorkFlow-1	3.463993	1.765799	90.476190	2.949135
2	EmbeddingsNNWorkFlow-Test	76.410999	73.605948	79.438315	21.874120

Predefined workflows (best & default)#

w = BlockingBasedWorkFlow()
w.best_blocking_workflow_ccer()
w.run(data, verbose=True)

***************************************************************************************************************************
                                         Method:  Standard Blocking
***************************************************************************************************************************
Method name: Standard Blocking
Parameters:
Runtime: 0.1045 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      0.12%
	Recall:        99.81%
	F1-score:       0.24%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Block Filtering
***************************************************************************************************************************
Method name: Block Filtering
Parameters:
	Ratio: 0.9
Runtime: 0.0792 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      0.24%
	Recall:        99.72%
	F1-score:       0.48%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Weighted Edge Pruning
***************************************************************************************************************************
Method name: Weighted Edge Pruning
Parameters:
	Node centric: False
	Weighting scheme: EJS
Runtime: 1.5783 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      1.33%
	Recall:        99.54%
	F1-score:       2.63%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Entity Matching
***************************************************************************************************************************
Method name: Entity Matching
Parameters:
	Metric: cosine
	Attributes: None
	Similarity threshold: 0.0
	Tokenizer: char_tokenizer
	Vectorizer: tfidf
	Qgrams: 3
Runtime: 0.5095 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:      1.33%
	Recall:        99.54%
	F1-score:       2.63%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
***************************************************************************************************************************
                                         Method:  Unique Mapping Clustering
***************************************************************************************************************************
Method name: Unique Mapping Clustering
Parameters:
	Similarity Threshold: 0.17
Runtime: 0.1052 seconds
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Performance:
	Precision:     94.52%
	Recall:        93.03%
	F1-score:      93.77%
───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
